CNC HRC55 Carbide Drill Bit
JR-115
We provide high-quality tungsten carbide end mills with the following advantages:
Micro grain raw material
Grain size: 0.6μm
Co 12.5%
TRS >3600 N/mm2
Hardness HRA 91.8-92.5
Workpiece HRC45-50 HRC55-60 HRC65
Helix angle 30°
Diameter of cutting edge 0.2-0.9 mm; 1-20 mm
Diameter of rods 4-20 mm
Length 50-150 mm
Cutting Form Flat, Square, Ball nose, Corner Radius, Taper Flute, etc
Flutes No. 2F
Micro grain raw material
Grain size: 0.6μm
Co 12.5%
TRS >3600 N/mm2
Hardness HRA 91.8-92.5
Workpiece HRC45-50 HRC55-60 HRC65
Helix angle 30°
Diameter of cutting edge 0.2-0.9 mm; 1-20 mm
Diameter of rods 4-20 mm
Length 50-150 mm
Cutting Form Flat, Square, Ball nose, Corner Radius, Taper Flute, etc
Flutes No. 2F
minimum order
1 piece
Quantity:
US $9.00
/ piece
Unable to ship to shipping address, please feedback to us

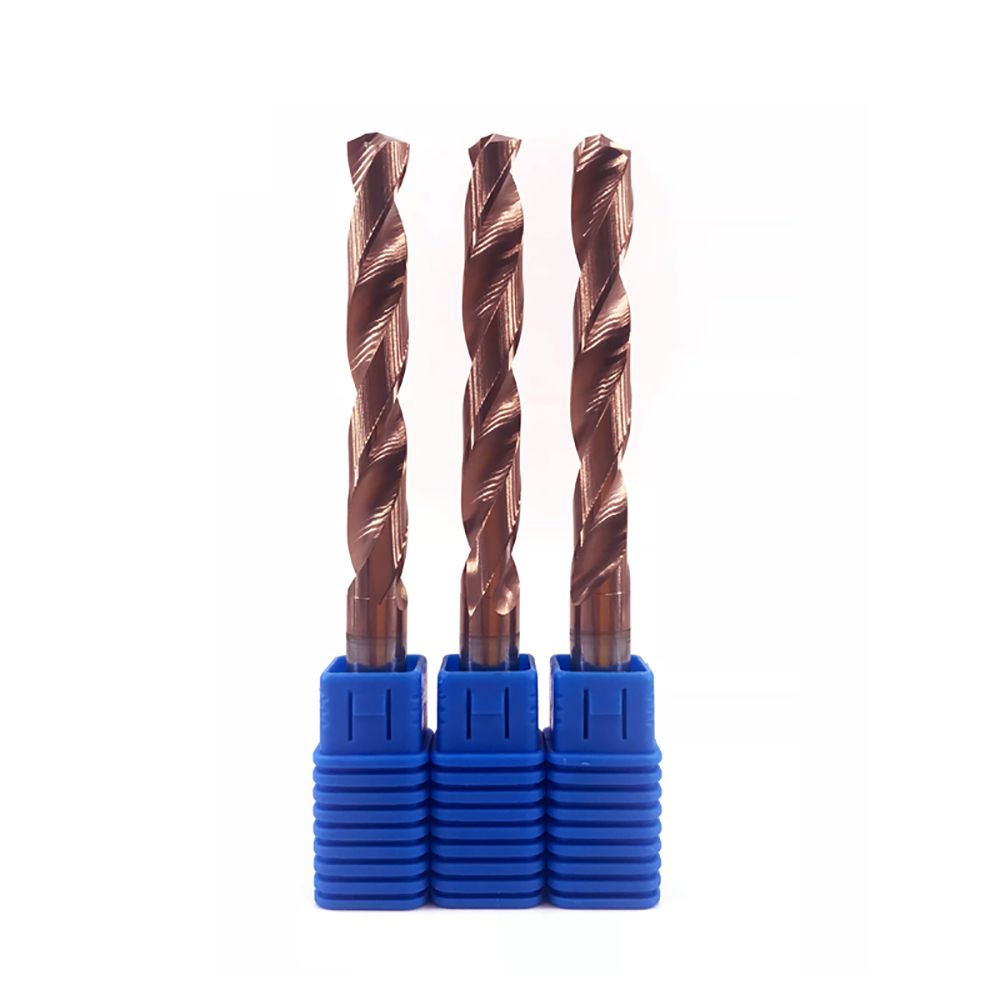

CNC HRC55 Carbide Drill Bit have two flutes and are designed for machining in one downward direction only. These long-life tools are available in various cutting diameters, lengths and shank diameters.
For precision holes, using a Carbide Drill Bit compared to helixing with an end mill is a better solution. A drilled hole will give you a consistent diameter all the way through the material, while an end mill deflects slightly and creates a tapered hole. Also, for a high volume of holes, using a Carbide Drill Bit is much faster. If you need to a deep hole, sometimes a Carbide Drill Bit is your only option due to the longer cutting lengths.
