CNC Carbide Center Drill Bit
JR-112
We provide high-quality tungsten carbide end mills with the following advantages:
Micro grain raw material
Grain size: 0.6μm
Co 12.5%
TRS >3600 N/mm2
Hardness HRA 91.8-92.5
Workpiece HRC45-50 HRC55-60 HRC65
Helix angle 30°
Diameter of cutting edge 0.2-0.9 mm; 1-20 mm
Diameter of rods 4-20 mm
Length 50-150 mm
Cutting Form Flat, Square, Ball nose, Corner Radius, Taper Flute, etc
Flutes No. 2F
Micro grain raw material
Grain size: 0.6μm
Co 12.5%
TRS >3600 N/mm2
Hardness HRA 91.8-92.5
Workpiece HRC45-50 HRC55-60 HRC65
Helix angle 30°
Diameter of cutting edge 0.2-0.9 mm; 1-20 mm
Diameter of rods 4-20 mm
Length 50-150 mm
Cutting Form Flat, Square, Ball nose, Corner Radius, Taper Flute, etc
Flutes No. 2F
minimum order
1 piece
Quantity:
US $2.32
/ piece
Unable to ship to shipping address, please feedback to us

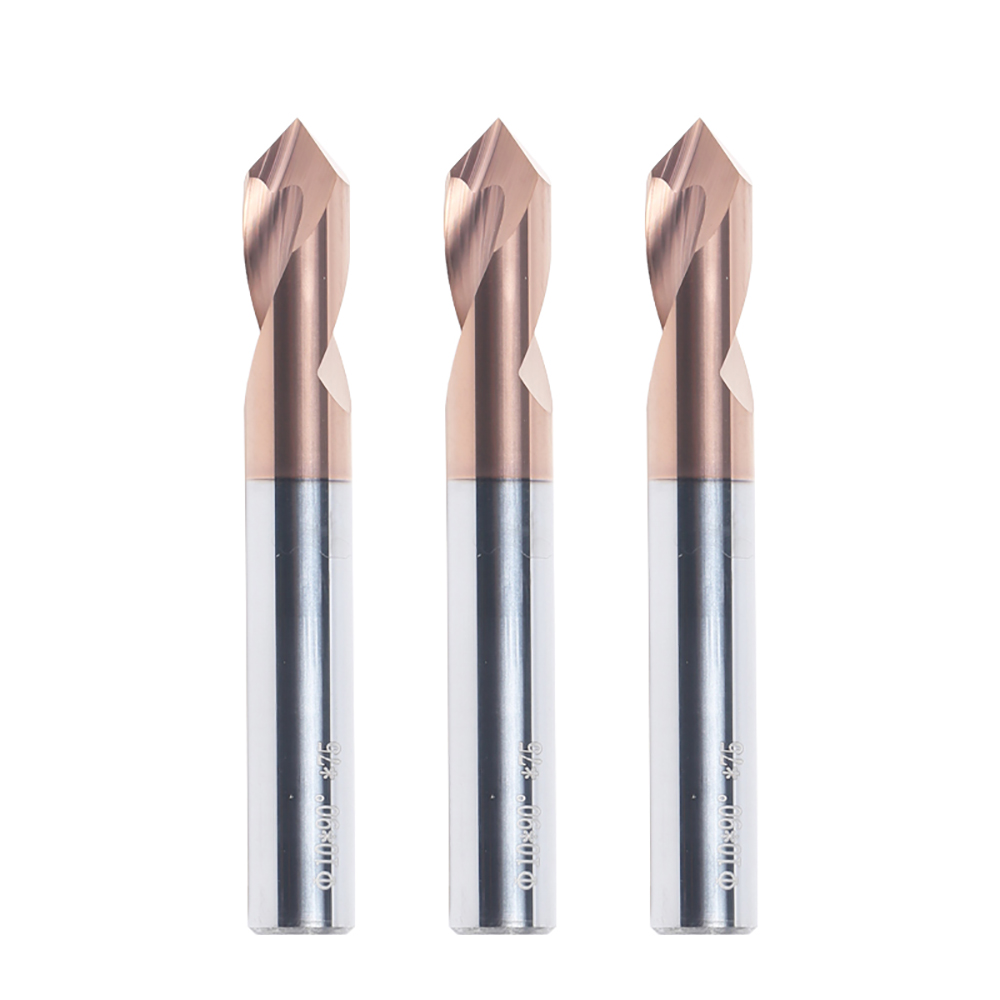

The Center Drill Bit have two flutes and are designed for machining in one downward direction only. These long-life tools are available in various cutting diameters, lengths and shank diameters.
For precision holes, using a Center Drill Bit compared to helixing with an end mill is a better solution. A drilled hole will give you a consistent diameter all the way through the material, while an end mill deflects slightly and creates a tapered hole. Also, for a high volume of holes, using a Center Drill Bit is much faster. If you need to a deep hole, sometimes a drill is your only option due to the longer cutting lengths.
