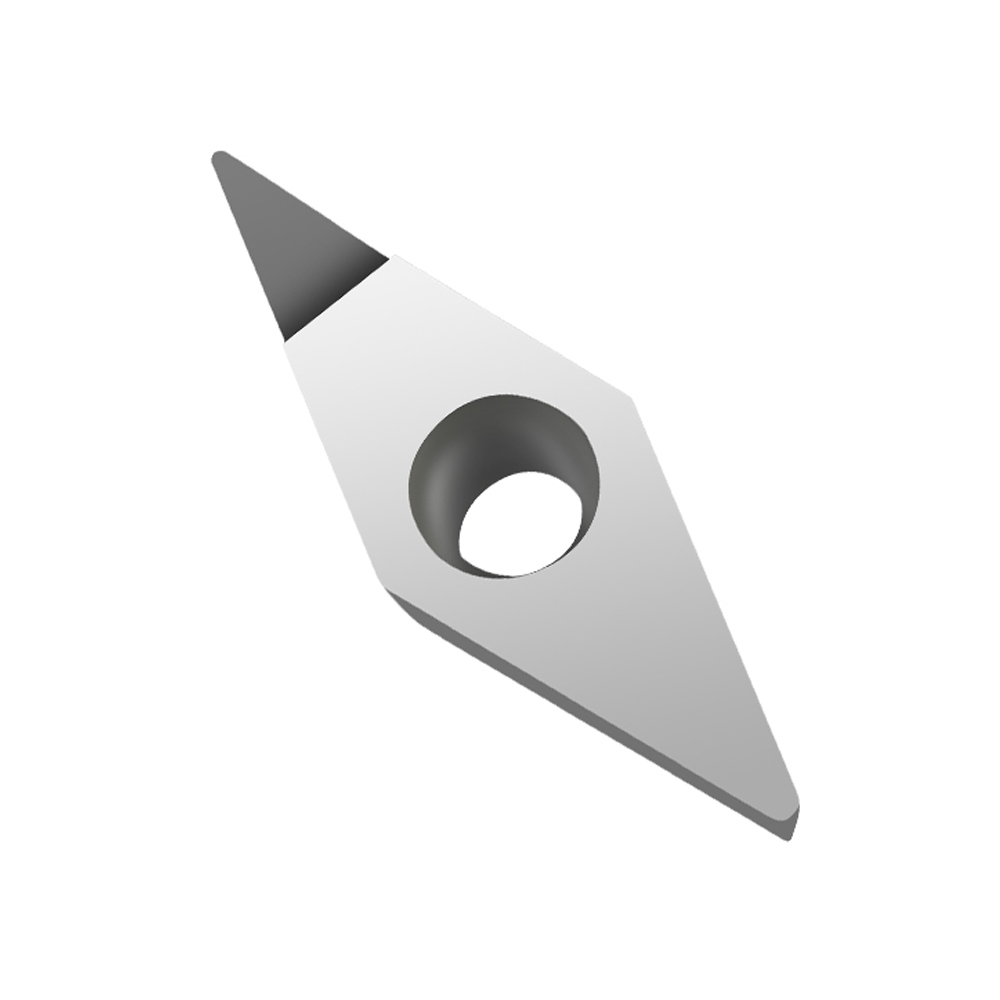

CNC PCD insert VCGT
Micro grain raw material
Grain size: 0.6μm
Co 12.5%
TRS >3600 N/mm2
Hardness HRA 91.8-92.5
Diameter of cutting edge 0.2-0.9 mm; 1-20 mm
Cutting Form Flat, Square, Ball nose, Corner Radius, Taper Flute, etc
PCD insert
PCD insert high-precision machining
JRDS ’s diamond material is a synthetic material sintered under high temperature and high pressure.
PCD (polycrystalline diamond) is ideal for non-ferrous metals, non-metal turning, milling and other types of cutting.
Features of PCD insert
JRDS ’s PCD insert ensure long tool life due to high hardness, and stable machining due to high thermal conductivity.
You can machine at high cutting speed, which increases machining productivity. Even at high speed, the inserts reduce built-up edge and allow high-precision machining.
Ultra-fine grained PCD grade for edge sharpness
An extremely wear-resistant grade, featuring strongly-bonded diamond grains that prevents the grains from breaking off during machining
Thanks to ultra-fine diamond grains, JRDS provides superior surface finish
There is also a 10° rake angle chipbreaker series
