MCD Insert

CNC MCD Insert

QY-122
We provide high quality MCD Insert with the following advantages:

Micro grain raw material

Grain size:  0.6μm

Co   12.5%

TRS   >3600 N/mm2

Hardness   HRA 91.8-92.5

Helix angle   30°

Diameter of cutting edge   0.2-0.9 mm; 1-20 mm

Cutting Form   Flat, Square, Ball nose, Corner Radius, Taper Flute, etc
minimum order
1 piece
Quantity:
US $54.00 / piece
Unable to ship to shipping address, please feedback to us
Contact Now
add to cart
Buy Now
  • You can only upload 1 attachments at most
  • Supported formats: PDF,JPG,PNG,EXCEL,WORD,STP,IGS,DWG,DXF,PDF,STEP
  • The size of the uploaded file should not exceed 10MB

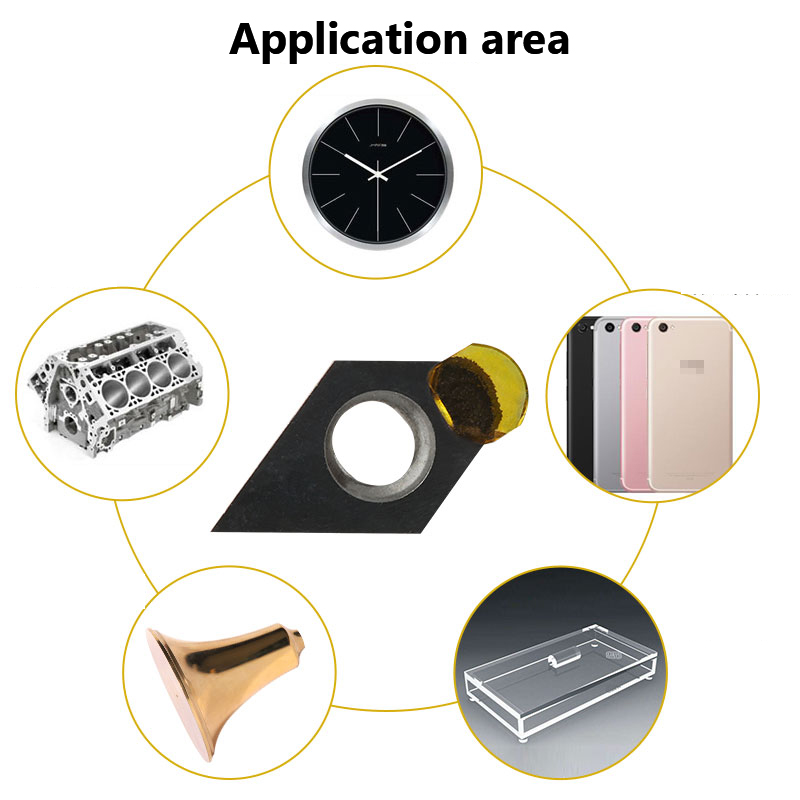

Monocrystalline Diamond (MCD for short) MCD Insert are the ideal choice for achieving the best possible surface finish in non-ferrous materials. Designed for finishing operations only, The MCD Insert features a hand-ground, singular diamond, along with a balanced, heavy carbide body. The combination of the two provides unparalleled finish, capable of providing mirrored finishes in brass and aluminum, and optically clear finish in polycarbonate and acrylic.

MCD Insert designed to remove a skim coat off the top of a surface. They generally are not designed for roughing and are very effective in truing up your material or quickly providing an excellent surface finish. These larger diameter long-life, micro-grain carbide tools are available in various cutting diameters and lengths, shank diameters, and geometries for specialty applications.

MCD Insert
