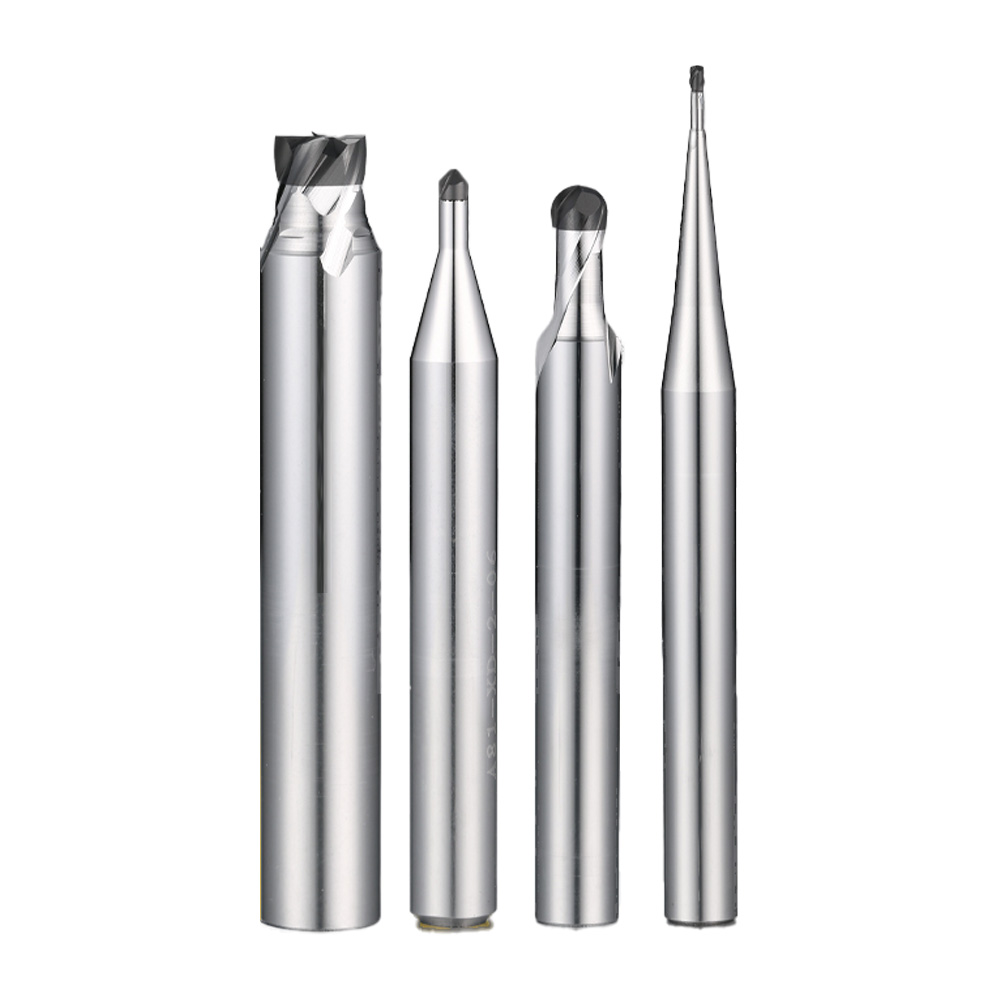

CBN End Mill

High Speed CBN End Mill

JR-118
We provide high-quality tungsten carbide end mills with the following advantages:

Micro grain raw material

Grain size:  0.6μm

Co   12.5%

TRS   >3600 N/mm2

Hardness   HRA 91.8-92.5

Workpiece   HRC45-50   HRC55-60   HRC65

Helix angle   30°

Diameter of cutting edge   0.2-0.9 mm; 1-20 mm

Diameter of rods   4-20 mm

Length   50-150 mm

Cutting Form   Flat, Square, Ball nose, Corner Radius, Taper Flute, etc

Flutes No.   2/4F
minimum order
1 piece
Quantity:
US $1.92 / piece
Unable to ship to shipping address, please feedback to us
Contact Now
add to cart
Buy Now
  • You can only upload 1 attachments at most
  • Supported formats: PDF,JPG,PNG,EXCEL,WORD,STP,IGS,DWG,DXF,PDF,STEP
  • The size of the uploaded file should not exceed 10MB

1. CBN (Cubic Boron Nitride) sintered alloy is second hardest material next to diamond as right figure, 3 times harder than Tungsten carbide, moreover having features of strong heat-resistance and high thermal conductivity. However, less tough characteristic of CBN often causes chipping of tool edge easily. Accordingly, CBN is recommended for finishing of hard materials with less cutting load on the tool edge, which guarantees extra-long tool life.

2. CBN End Mill has low affinity with iron-based metal,so it can be used for the high speed cutting of iron-based metal,CBN End Mill high precision & surface finished,cutting speed is 10 times than carbide,CBN End Mill hardness& wear resistance is 50 times than carbide cutting tool ,25 times than ceramic tool.

CBN End Mill
